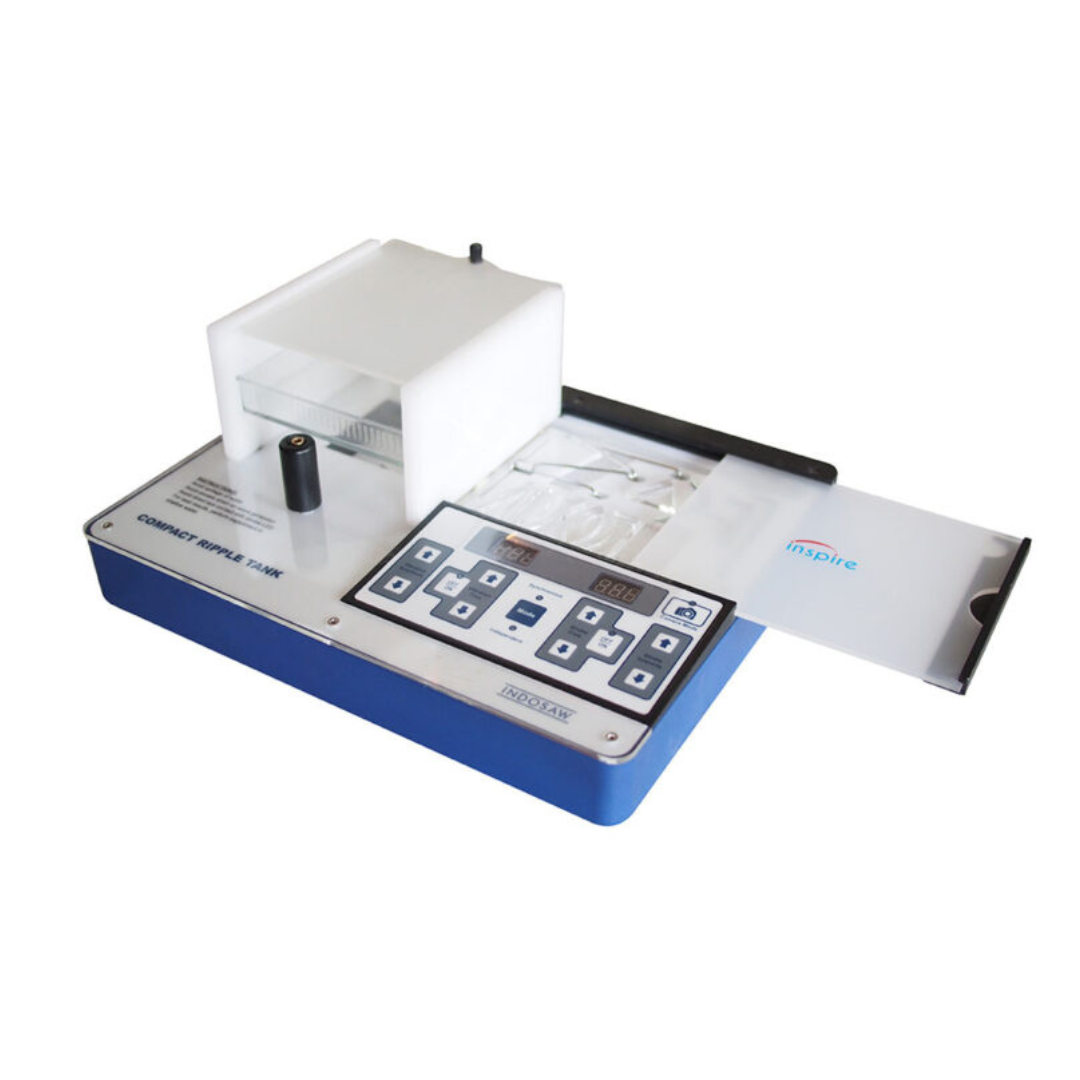

Inspire Compact Ripple Tanks (Advanced) SA705I
“Shipping from the UK & India”
The ripple tank is the most effective way for students to study waves. The Inspire Ripple Tank contains all the accessories needed to cover the full range of experiments, such as reflection, refraction, diffraction, and interference, with the accessories stored in a handy tray at the top of the unit. Users can change the frequency of both the dippers and the LED strobe lighting.
The advanced model also offers a wide range of frequency and amplitude control, as well as a ‘Camera Mode’ to view images with the help of a camera. For stationary waves, the dipper and strobe frequencies can be synchronized or slightly offset to obtain moving waves. Additionally SA705I offer a standout feature is the Camera Projection Mode, which enables wave patterns to be projected onto a screen for large audience demonstrations, making it perfect for interactive teaching sessions.
£119.00
- Refraction of Light Wave
- Optics and Behavior Wave
- Properties and Relationships
- Interference Patterns Image
- Formation Reflection of Wavefronts
| Price | Code | Description | Qty. |
| £119.00 | SA705I | Inspire Compact Ripple Tank (Advanced) | 1 |
| £83.00 | SA730 | Camera with Stand (Optional) | 1 |
| Code | Description | Qty. |
| CK677 | Advanced Compact Ripple Tank Base Unit | 1 |
| CD1093 | Tank for Water | 1 |
| CD691 | Barrier Spherical | 1 |
| C13606 | Double Convex | 1 |
| C13607 | Double Concave | 1 |
| C11717 | Triangular shape | 1 |
| C11718 | Rectangular lens | 1 |
| C11719 | Plain Convex lens shape | 1 |
| C11720 | Plain Concave lens shape | 1 |
| C11721 | Prism | 1 |
| C11722 | Barrier L Shape Big | 2 |
| C11723- | Small diffraction barrier | 1 |
| C11725 | Single point dipper | 1 |
| C11728 | Double point dipper | 1 |
| C11730 | Plane bar dipper | 1 |
| SB289 | Dropper | 1 |
| C12581 | Barrier L Shaped big with slot | 1 |
| C12582 | Barrier L Shaped | 1 |
| R12464 | Power Adaptor 12V, 2A , UK Plug | 1 |
| C15078 | Base A shaped (Optional) | 1 |
| R11039 | Camera (Optional) | 1 |
| C15079 | Holder for Camera (Optional) | 1 |
IGCSE Level:
Exp-1 Demonstrates the behavior of waves, including reflection and refraction.
Exp-2 Visualizes transverse wave motion (ripples on the surface of water).
Exp-3 Shows how waves reflect and refract at boundaries.
Exp-4 Allows exploration of wave speed and wavelength calculations.
Exp-5 Demonstrates constructive and destructive interference patterns.
Exp-6 Shows how energy is transferred through different media.
A-Level:
Exp-1 Demonstrates principle of superposition in waves, showing interference.
Exp-2 Properties of waves (frequency, amplitude, wavelength)
Exp-3 Observes the refraction and diffraction of water waves.
Exp-4 Physical representation for understanding electromagnetic wave behavior.
Exp-5 Demonstrates the formation and behavior of standing waves.
Exp-6 Explores how energy is transferred via wave propagation in a medium.
