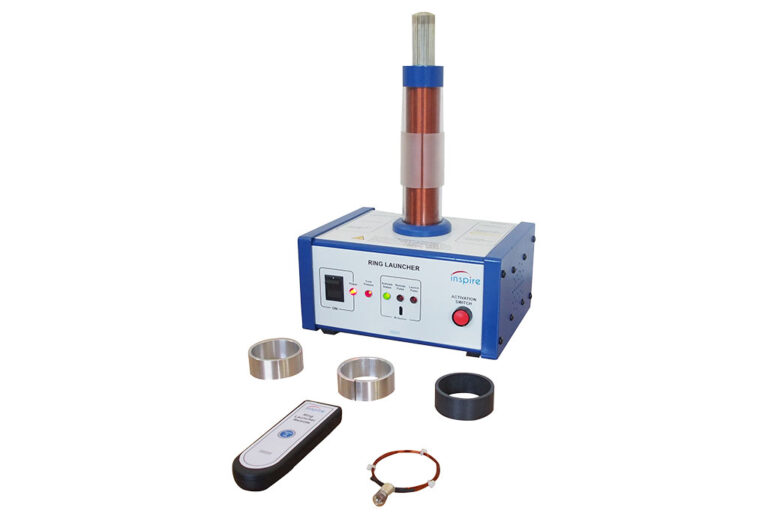

RING LAUNCHER – SV543A
“Shipping from India”
Ring launcher demonstrates Lenz’s law and effects of electromagnetically induced currents in a unique setup.
An iron core is placed in a solenoid. The ring fits over the coil at some height. When we press launch button on control panel to energize the coil, a large magnetic induction builds-up on the axis of coil, generating oppositely directed induced current in the ring. The two oppositely directed inductions repel, aluminium ring shoots up to several feet in air. No effect is seen when using aluminium ring with split or acrylic ring.
- Electromagnetic induction.
- Magnetic flux.
- Faraday laws.
- Lenz’s law.
- Eddy current.
- Self induction.
- Mutual induction.
- Activation of the circuit by solenoid insertion and thus provides overcurrent protection.
- Confirmation of activation by voice message.
- Necessary instruction and precautions are displayed on the unit.
- IR Remote for safe launching.
- Separate indication LED for Power, Activation Status, Remote Pulse and Launch Pulse.
| Code | Description | Qty. |
| C11735 | Ring Launcher Unit | 1 |
| C5929 | Iron Core | 1 |
| CD392 | Adjustment Collar | 1 |
| C5940 | Aluminum Ring | 1 |
| C5941 | Aluminum Ring with split | 1 |
| C5942 | Plastic Ring | 1 |
| C7617 | Coil with Lamp | 1 |
| C10515 | Core Holding Ring | 1 |
| CA495 | Main Power Cord | 1 |
| C13054 | Remote | 1 |
| R11136 | Bulb 4.5V | 1 |
Exp–1:- To demonstrate the Lenz’s law and effects of electromagnetically induced currents.
