Inspire Wireless Dynamics Car with Tracks Systems
Inspire Wireless Dynamics Car with Tracks Systems
Inspire Wireless Dynamics Car with Tracks Systems SL1047A
“Shipping from the UK & India”
This Dynamics Car is designed to meet the requirements of the IGCSE and A-Level Physics curriculum, offering highly precise, real-time data recording at 50 samples per second. Bluetooth connectivity eliminates the need for wired connections, making it a modern alternative to traditional linear air tracks, ramps, trolleys, and light gates.
A secondary timing car, available as an additional option, connects to the primary car via an IR line-of-sight beam, enabling experiments on collisions and momentum. The primary car connects via Bluetooth to PCs or where software displays data on displacement, velocity, acceleration, force, energy, and momentum. The software includes user-selectable ‘Basic’ and ‘Advanced’ modes, along with experiment templates.

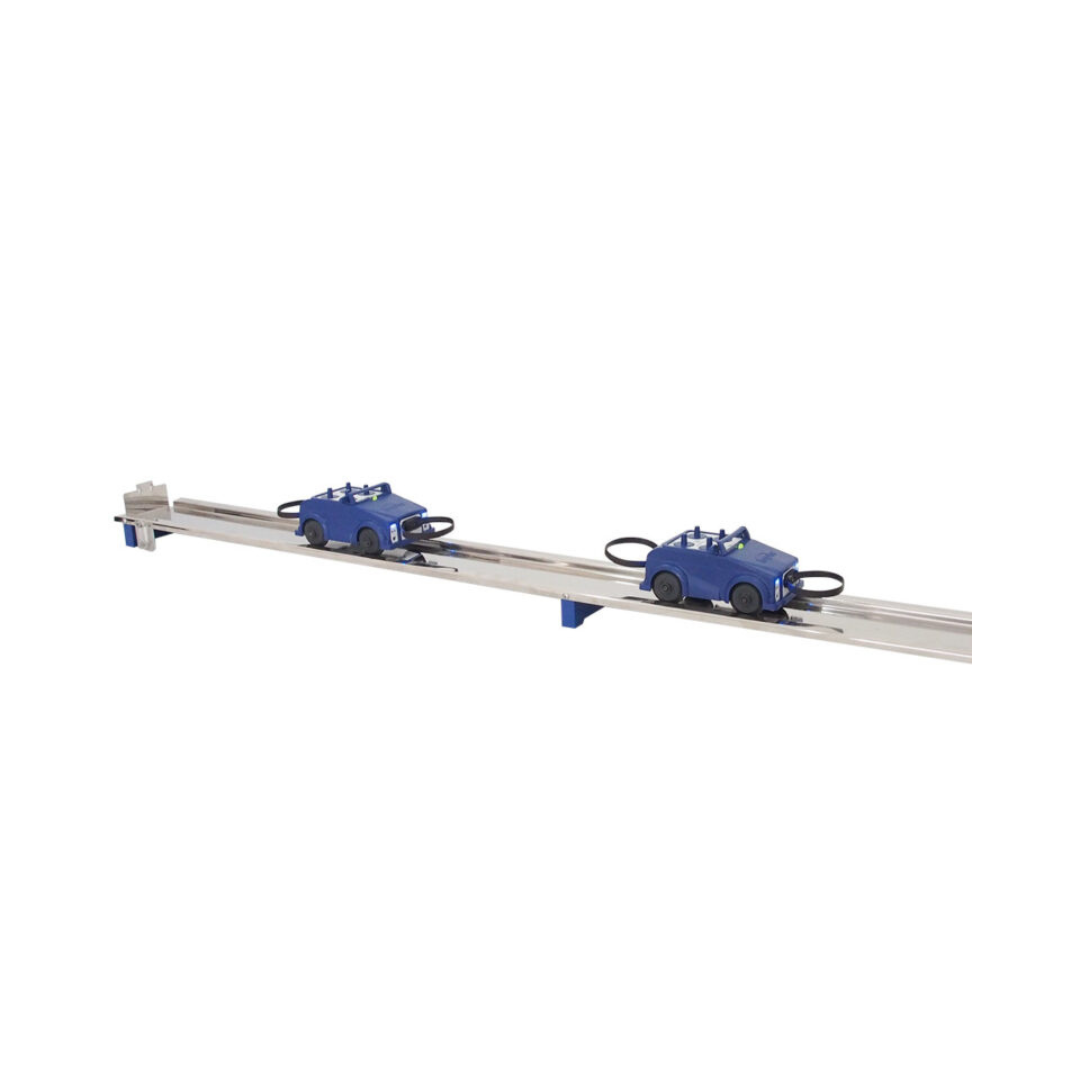

Experiments can be conducted on a high-quality 1.5m stainless steel track, which can also be inclined to serve as a ramp. For circular dynamics studies, a separate curved track is available, enabling users to graph damped simple harmonic motion and calculate the value of ‘g’ as an alternative to traditional g by free fall setups.
The accessory kit includes magnetically attachable bumpers, pulleys, masses, and a crumple zone attachment, allowing for a wide range of experiments, including elastic, inelastic, and coalescing collisions, demonstrations of Newton’s Second Law using a pulley, and studies on the conservation of momentum and energy.
£536.00
- Motion In One Dimension : Straight and Curved Tracks.
- Distance, Velocity & Acceleration.
- Newton’s Laws of Motion.
- Linear Momentum, Kinetic and Potential Energy.
- Force and Friction.
- Damped harmonic oscillation.
- Conservation of Momentum.
- Conservation of Energy.
- Conversion of Potential Energy to Kinetic Energy and Vice Versa.
- Elastic and Inelastic Collision.
- Concept of Horizontal and Inclined Motion.
- Concept of Potential Well Track.
- Spring constant.
- Crumple zone absorbs energy in crash.
- Accompanied by Windows software with features like graphical visualization, polynomial fitting, and advanced data analysis tools.
- Includes a 1.5-meter stainless steel track that can be used as a straight or inclined ramp.
- Optional curved tracks enable studies of circular dynamics and SHM.
- Includes magnetically attachable bumpers and accessories for detailed analysis of elastic, inelastic, and coalescing collisions.
- Quick setup and seamless functionality as a wireless alternative to traditional air tracks.
- Simulates real-life scenarios like crumple zones to study energy absorption.

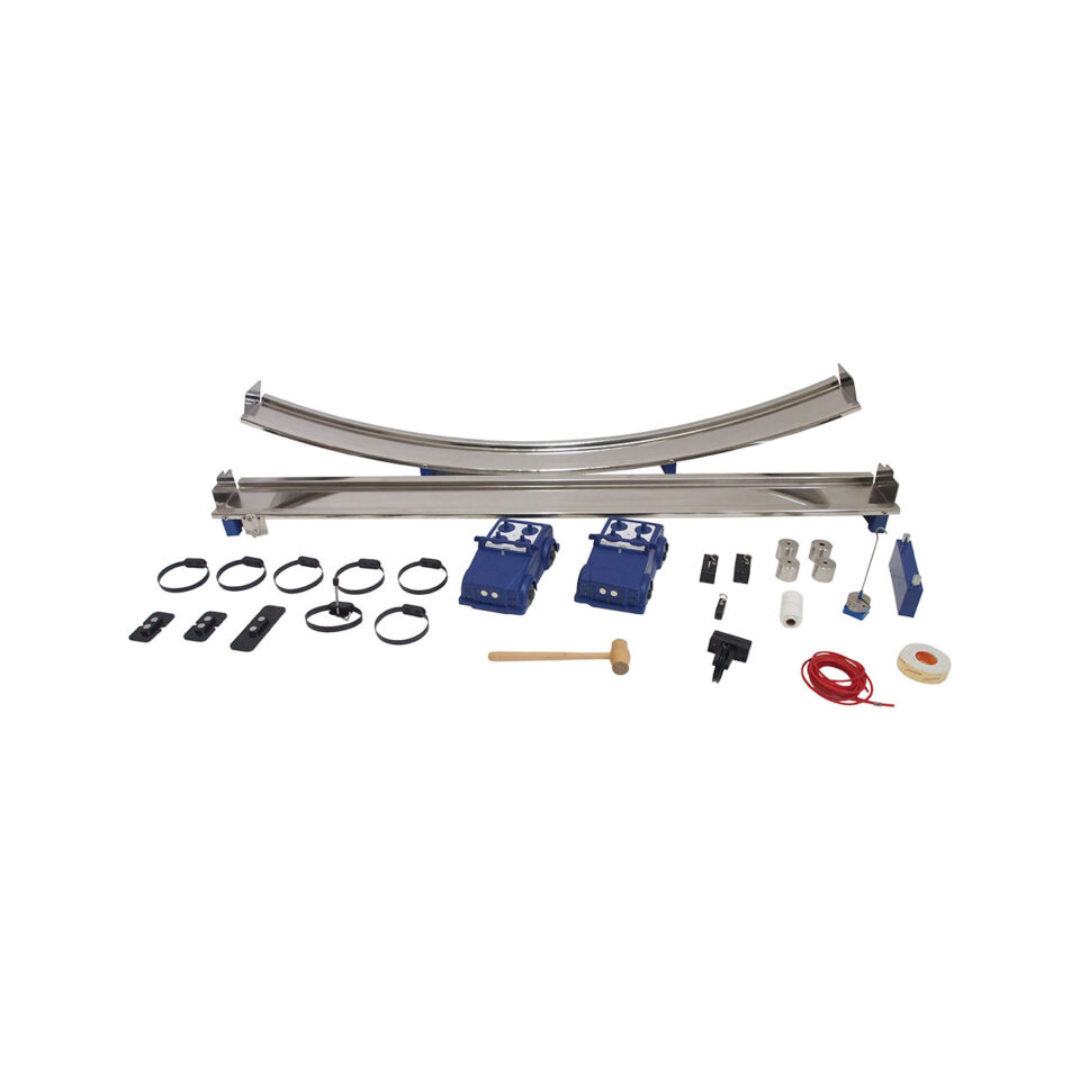

| Price | Code | Description | Qty. |
| £218.00 | SA709 | Inspire Wireless Dynamic Car (Primary) | 1 |
| £165.00 | SA710 | Inspire Dynamic Car (Secondary) | 1 |
| £100.00 | SA711 | Dynamic Linear Track 1.5 m | 1 |
| £66.00 | SA712 | Dynamic Curved Track | 1 |
| £134.00 | SA714 | Cotton Tread White | 1 |
| Rubber Band (Size 2.5 ” ) | 10 | ||
| Screw Driver | 1 | ||
| 1″ Double Sided Tape 1 m | 1 | ||
| Barrier Large | 2 | ||
| Weight Hanger | 1 | ||
| Slotted Weight | 9 | ||
| Weight 150 gm | 4 | ||
| Valcro Pad | 1 | ||
| Hook attachment for Track | 2 | ||
| Inclination Feet | 1 | ||
| Hook attachment for Car | 2 | ||
| Elastic Rope | 1 | ||
| Explosion Bumper Assembly | 1 | ||
| Elastic Spring | 6 | ||
| Pulley with Attachment | 1 | ||
| Wooden Hammer | 1 | ||
| £536.00 | SL1047A | Inspire Wireless Dynamics Car Complete Kit | 1 |
IGCSE Level:
Exp-1 Investigation of the relationship between force, mass, and acceleration.
Exp-2 Application of Newton’s First, Second, and Third Laws.
Exp-3 Measuring and analyzing distance, speed, and acceleration using light gates.
Exp-4 Exploring the effects of different surfaces and inclines on motion.
Exp-5 Investigating kinetic energy, potential energy, and energy conservation.
Exp-6 Studying the conservation of momentum in elastic and inelastic collisions.
A-Level:
Exp-1 Quantitative analysis of motion in one dimension with accurate displacement, velocity, and acceleration data.
Exp-2 Calculating forces and motion components on inclined planes.
Exp-3 Exploring damped harmonic motion and simple harmonic motion in curved track setups.
Exp-4 Detailed analysis of collision scenarios, including energy dissipation.
Exp-5 Experimental measurement of work done and power output under varying loads.
Exp-6 Demonstrating the effects of air resistance and drag forces on motion.
Exp-7 Energy changes and safety analysis through crash tests.
