Inspire Power Supply 1-15V, AC/DC, 6A
Inspire Power Supply 1-15V, AC/DC, 6A

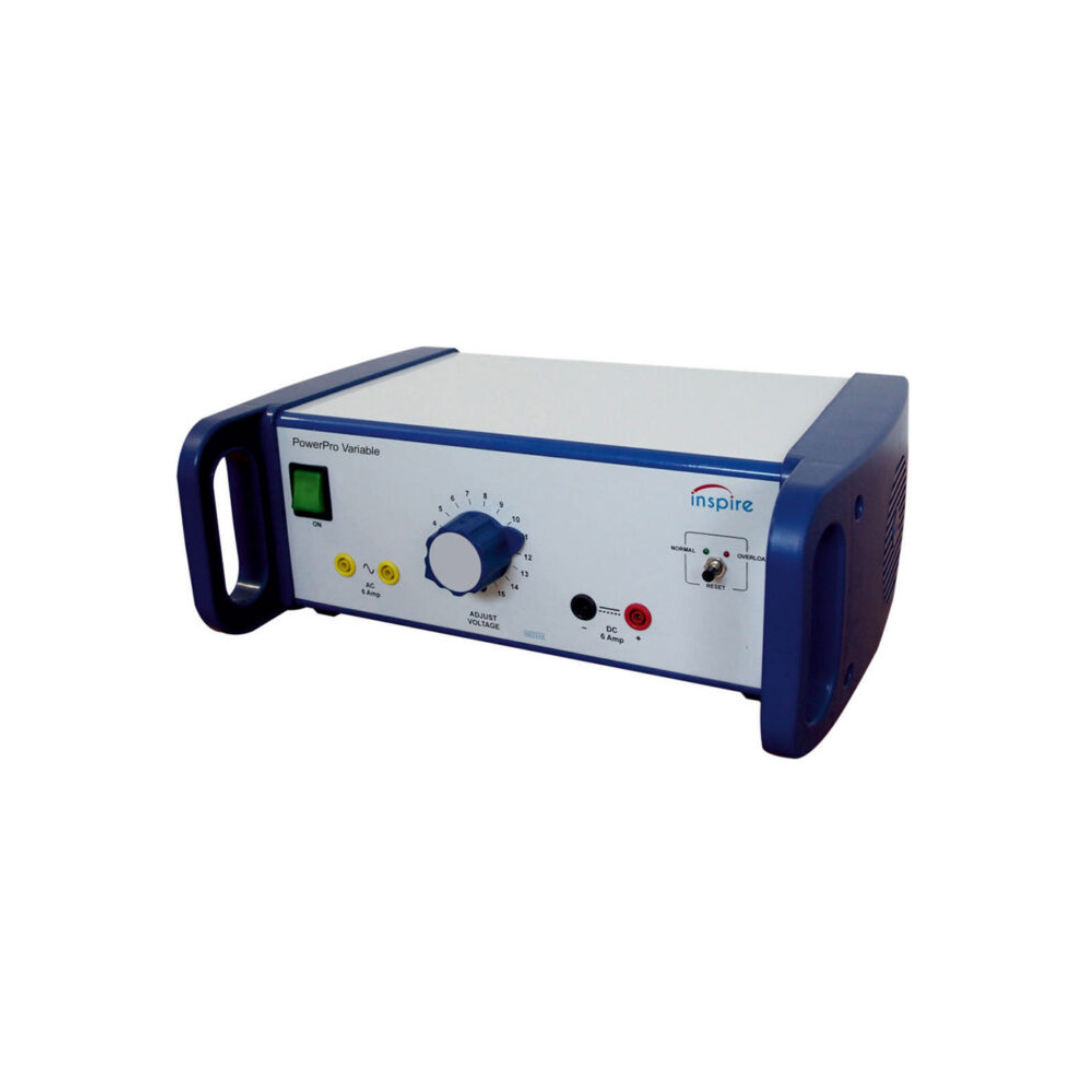

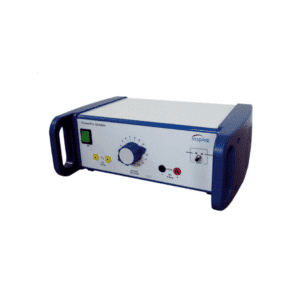

Inspire Power Supply 1-15V, AC/DC, 6A SE1076A
“Shipping from the UK & India”
This Variable Power Supply is ideal for experiments involving voltage-sensitive components that could be damaged by over-voltage, requiring precise power adjustments. It provides a 1–15V AC/DC output, with rectified DC. This power supply has features of locking the knob, that allow users to set a maximum voltage limit. Dual overload protection is ensured by an internal fuse and a resettable electronic trip.
£209.00
- Universal & customized 230V mains operations.
- Teacher lockable knob to limit the maximum voltage.
- Split Bobbin Transformer Design with additional inbuilt thermal protection.
- Fully protected secondary by high speed, resettable electronic trip.
- Slow-blow fuse protection.
- Safety sockets for use with shrouded safety 4mm plugs but conventional leads with standard 4mm plugs can also be used.
- Recommended for general purpose laboratory and workshop use where voltage sensitive components may be damaged by over voltage and experiments requiring fine power adjustments.
- Stackable with integrated ABS handles and a detachable IEC mains cable
- CE certified to BSEN61010
| Mains operations | Mains Voltage 230V AC (±10%), 50Hz |
| Output | 1-15V AC/DC (DC is rectified unsmoothed & unregulated.) |
| Safety Features |
|
| Application | Useful for general purpose laboratory and workshop use, particularly in situations where voltage sensitive components may be damage d by over voltage and experiments requiring fine power adjustments. |
| Dimensions | 37 x 26 x 13cm |
| Weight | 7.2kg (Approx.) |
| Price | Code | Description | Qty. |
| £209.00 | SE1076A | Inspire Power Supply 1-15V, AC/DC, 6A | 1 |
