Magnetic Field Investigation Apparatus SA737B
“Shipping from the UK & India”

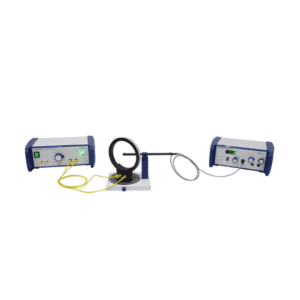

Inspire magnetic field investigation apparatus provides an excellent way to study the dependence of magnetic flux on the dot product of Magnetic Induction and Area vector. It can be supplied with or without Inspire power supply.
£324.00
- High accuracy axial probe
- Useful for measuring AC magnetic field
- Ranges: 0 – 20, 0 – 200 and 0 – 2000mT options
- Tare/zero adjustment for background magnetic field
- Measurement of magnetic field in transverse and longitudinal direction
- Precision Moulded Coils
- Wide Experimental Scope
- Robust Design

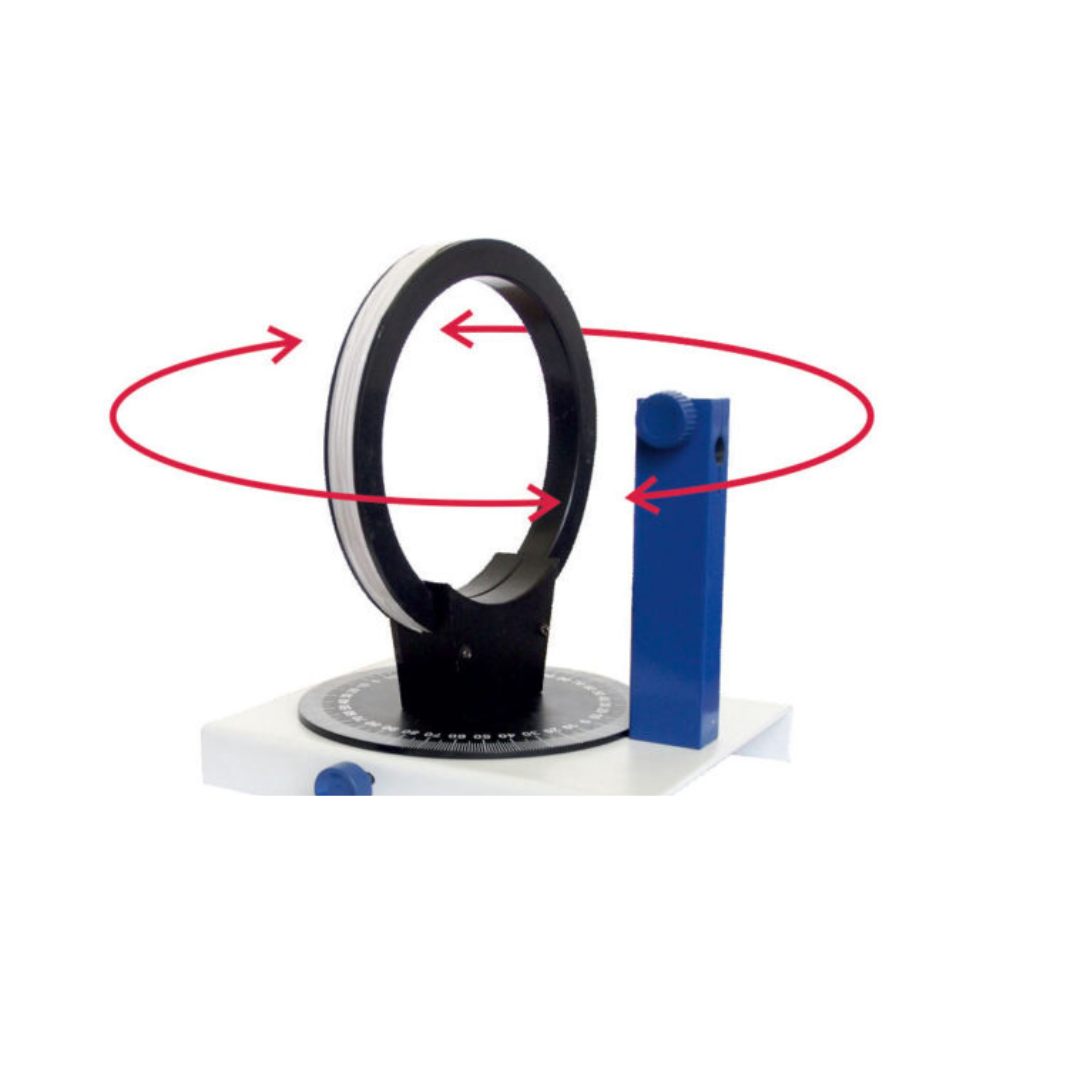

- Coil Lockable to any angle
| Price | Code | Description | Qty. |

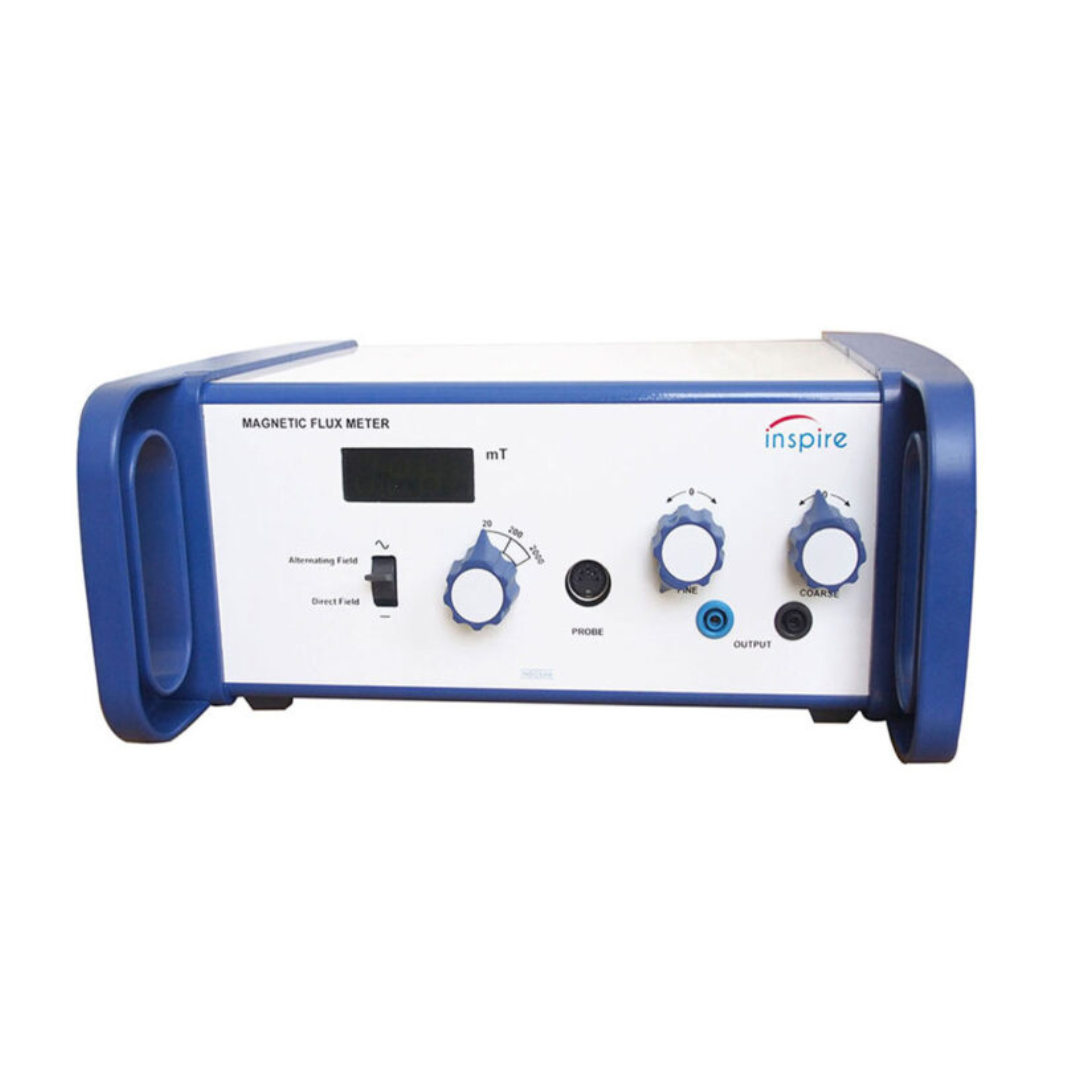

| £324.00 | SA737B | A-Inspire Magnetic Flux Density Meter (Tesla-Meter) | 1 |
| Magnetic Field Investigation Coil | 1 | ||
| Flexible Plug in Lead 100cm, Black | 1 | ||
| Flexible Plug in Lead 100cm, Red | 1 | ||
| £209.00 | SE1076A | Inspire Power Supply 1-15V, AC/DC, 6A (Optional) | 1 |
IGCSE Level:
Exp-1 Visualize magnetic field lines around magnets and current-carrying conductors.
Exp-2 Investigate the strength and polarity of an electromagnet.
Exp-3 Observe how magnetic materials align with Earth’s magnetic field.
A-Level:
Exp-1 Study the magnetic field variation with current and distance.
Exp-2 Explore the uniform magnetic field inside a solenoid.
Exp-3 Demonstrate the force on a current-carrying conductor in a magnetic field.
